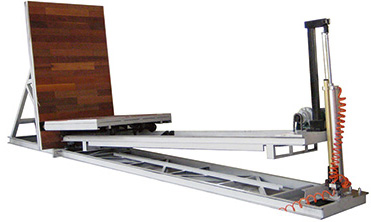

MHI Series bevel shock test machine

HOME > PRODUCT LISTS > MHI Series bevel shock test machine

It's a new system which is suitable for the bevel tests under different conditions, but it's mainly used to simulate product's ability to withstand the shock during actual transportation, e.g. shock caused by carry, handling, carriage replacing, and emergency braking etc. This test equipment is suitable for the bevel shock test in the units like packaging technology center, manufactory of packages, and transportation etc.

performance features

MHI series can meet the basic test criterias of the package transportation. The included angel between the surface of the guide rail and horizon is 10°, the length of the rail is 7m, when the small analog trolley on the test table is pulled to the upper part of the ramp, release the trolley, it hits the dam-board after sliding down, then completes the test. Slides for long, the shock dam-board squares to the guide rail, with high test precision, conform to the shock happens in actual environment.

⊙ Flexiable positioned electric sliding trolley, easy to fix the position, achieves required speed test value.
⊙ With low sliding height, good for the installation of tested products.
⊙ Sliding board can be adjusted to be horizontal, easy for the installation of the tested products.
⊙ Can be operated by remote control, fully ensures the safety of test operators.
⊙ Only needs to fix the machine on the floor during installation, no other complicated procedures, easy to test.
